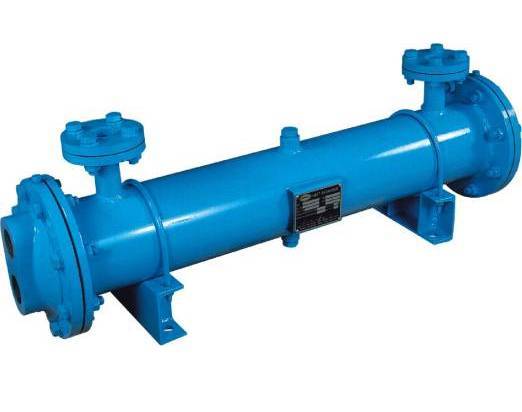

Shell and
Tube Heat Exchangers
-
Rugged construction,
high design flexibility, economical and faster delivery.
-
Most suited for
applications such as oil cooling, inter/after cooling,
water to water cooling and gas to gas cooling.
-
Units can withstand
pressures up to 200 bar (3,000 PSI) and temperatures up to
800C. Available in fixed tube sheet, floating head
(removable bundle) and U-tube designs.
Designed as per TEMA, ASME Section VIII Division 1, or
recommended good engineering practice.
-
Standard units are
available for capacities ranging from 500 kcal/hr. to
60,000 kcal/hr. Tube material can be of copper, admiralty
brass, stainless steel (seamless & welded), carbon steel,
cupro-nickel or aluminium.
-
Other parts are of
carbon steel, cast iron, stainless steel, brass and naval
brass.
Designs especially suited for special applications such as
heavily fouling, highly viscous and corrosive fluids.
|
